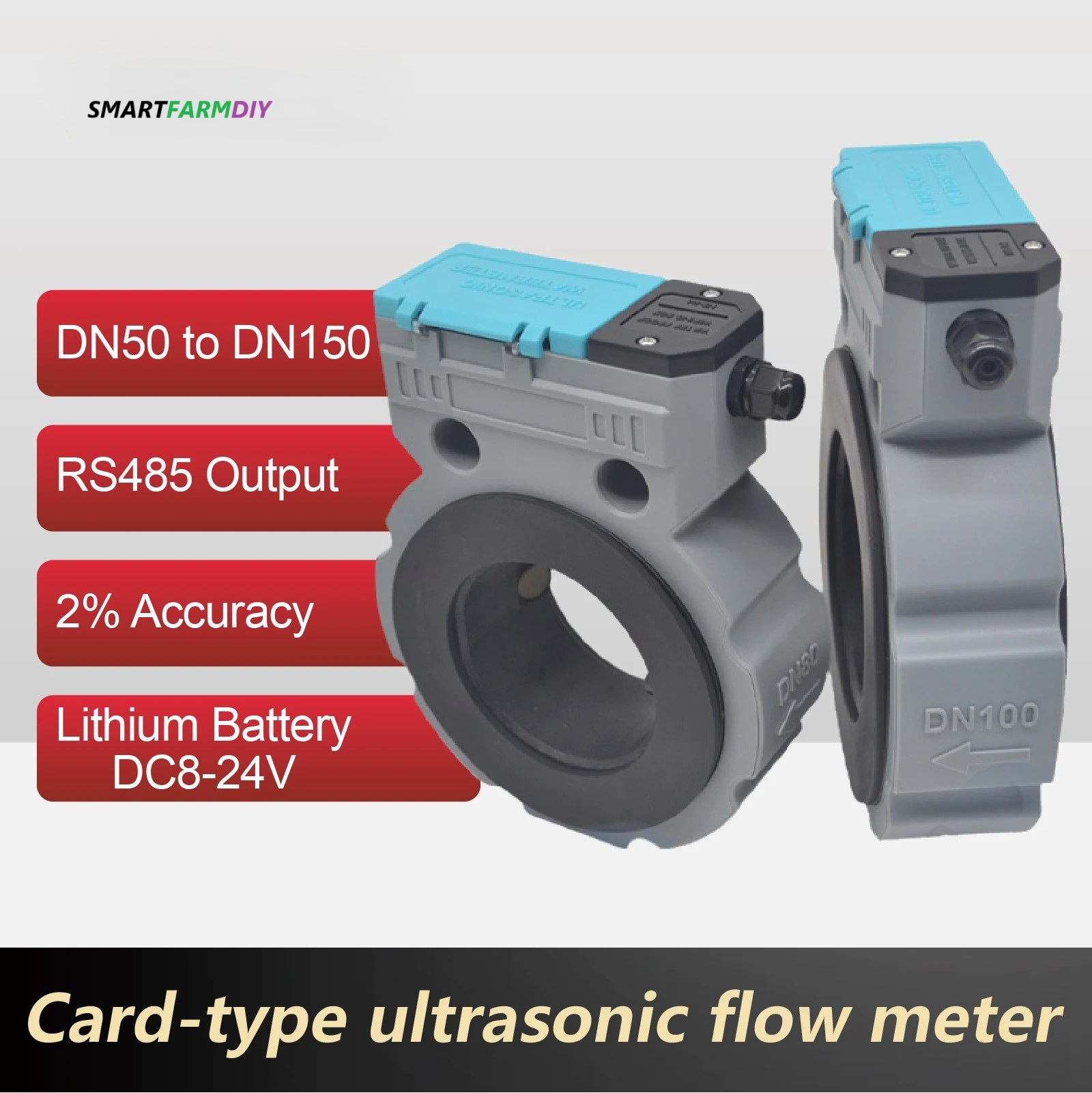

IP68 Intelligent Ultrasonic Water Flow Meter Battery Operated RS485 Pipe Mounted For Agriculture

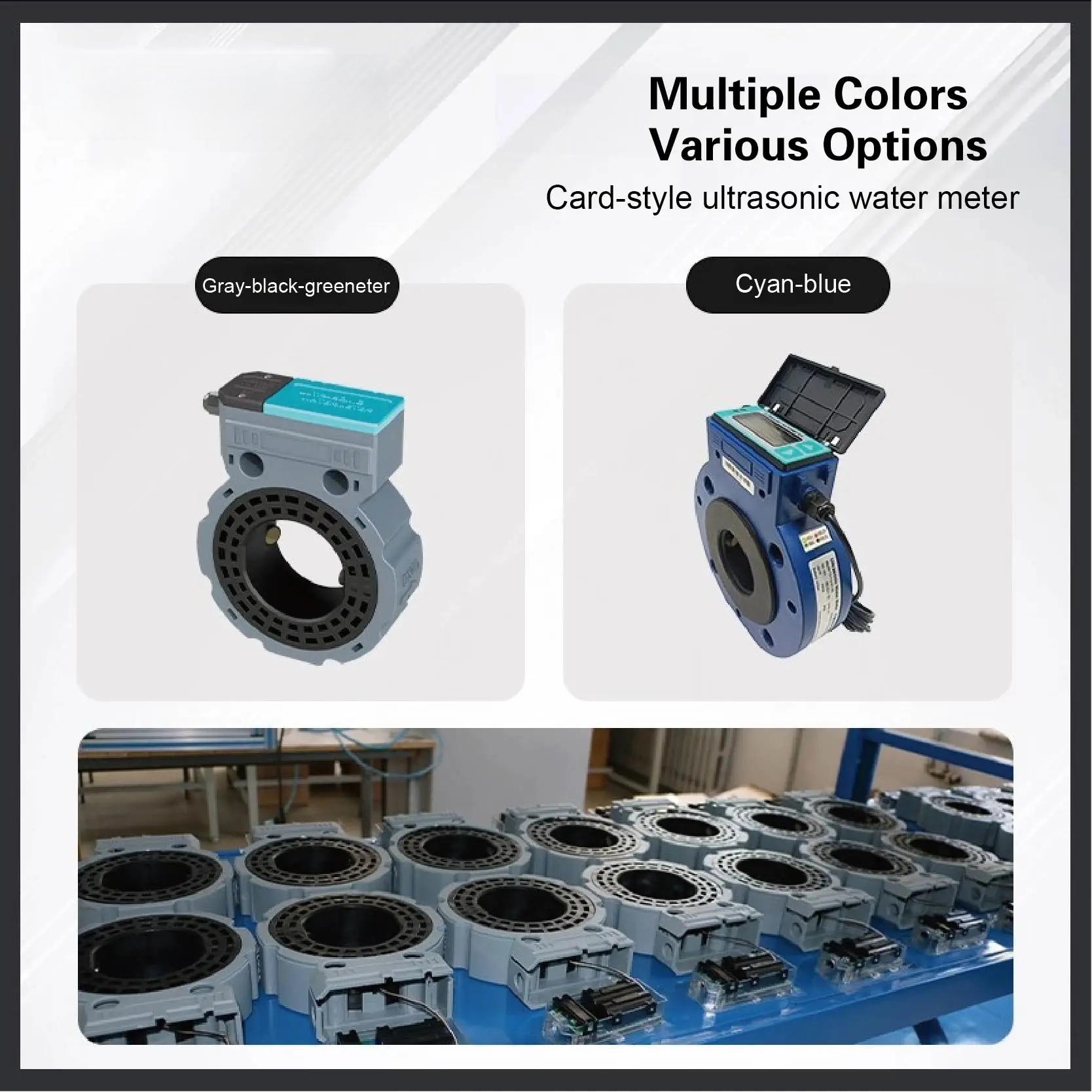

Color Options

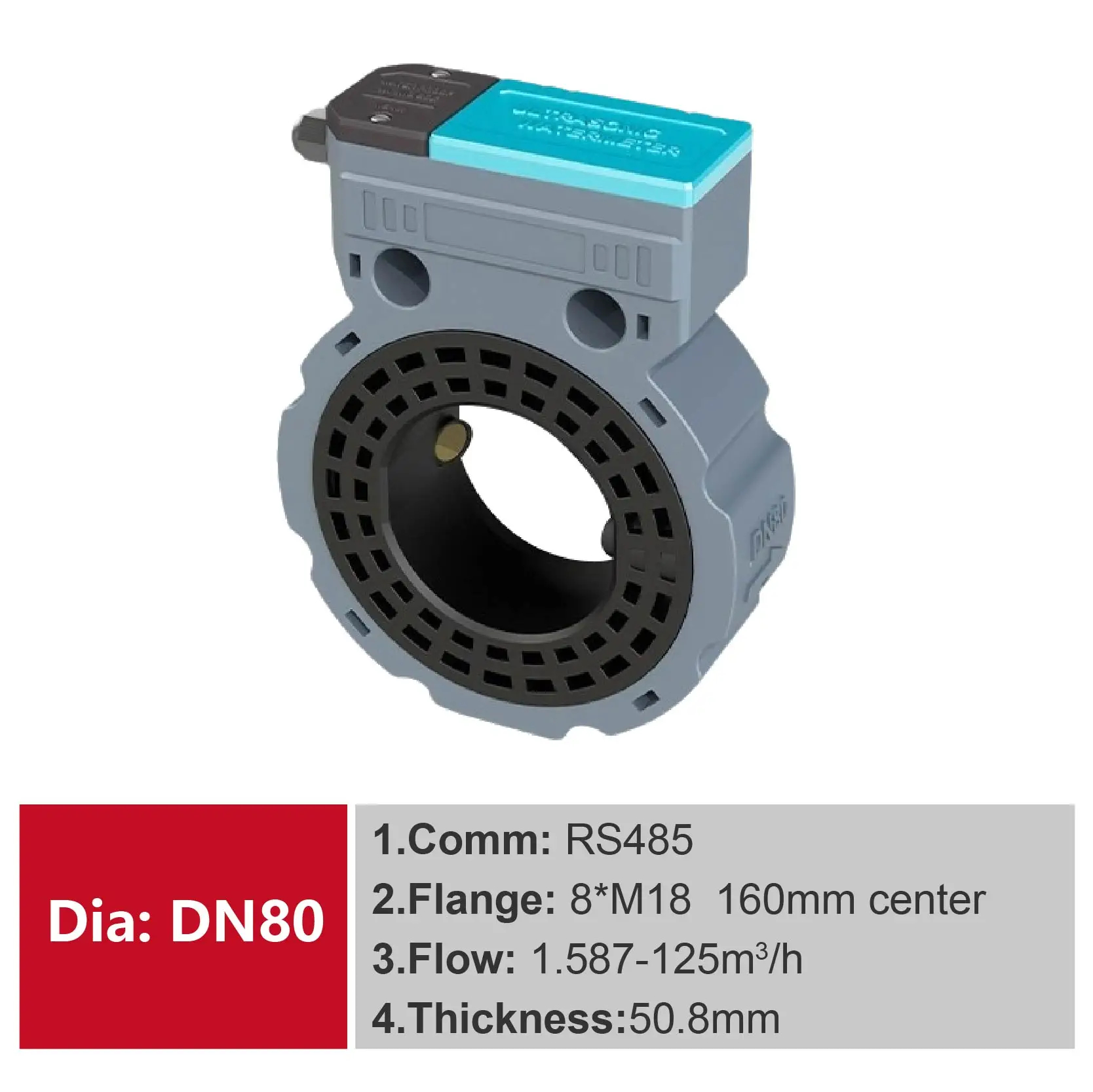

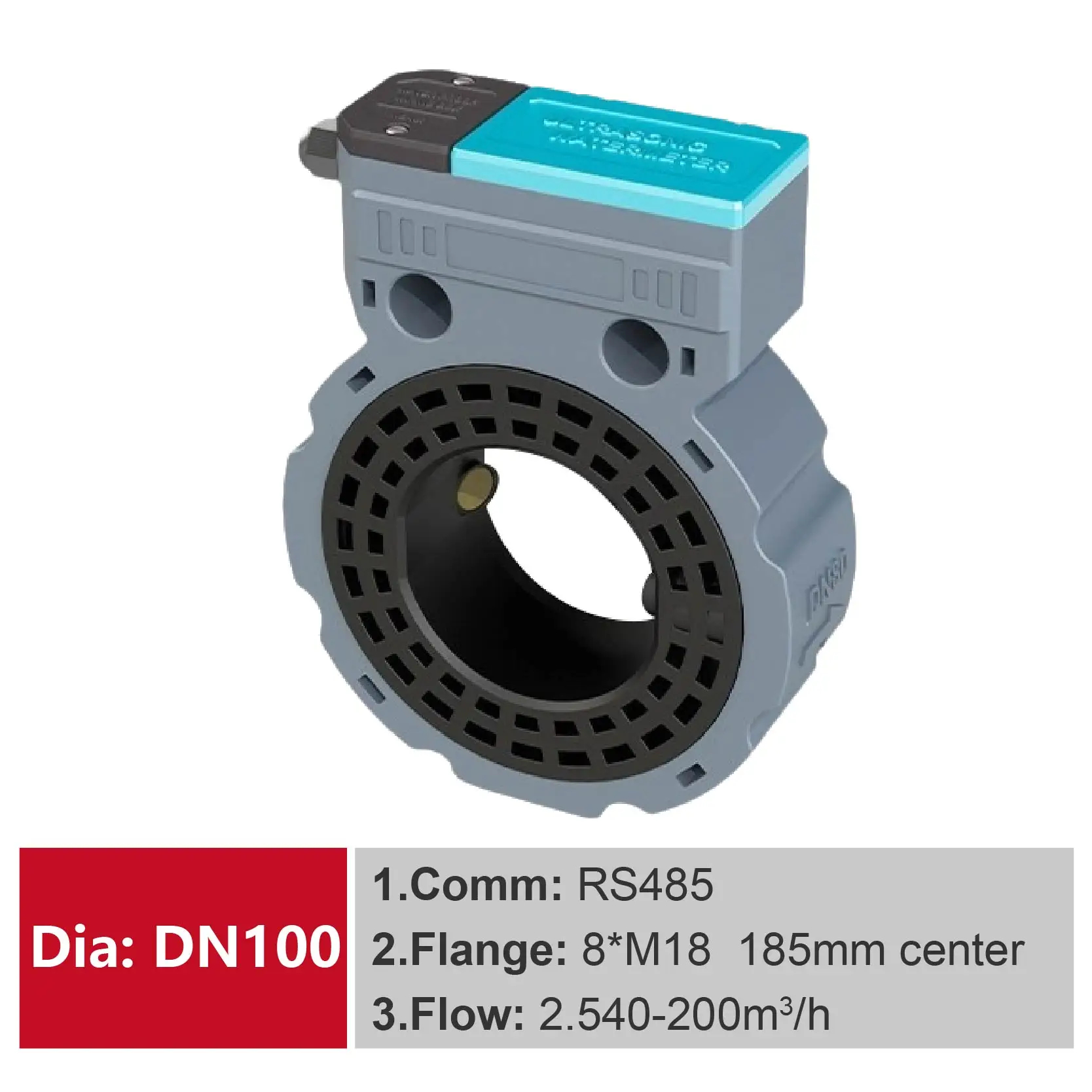

DN50 to DN150 with RS485

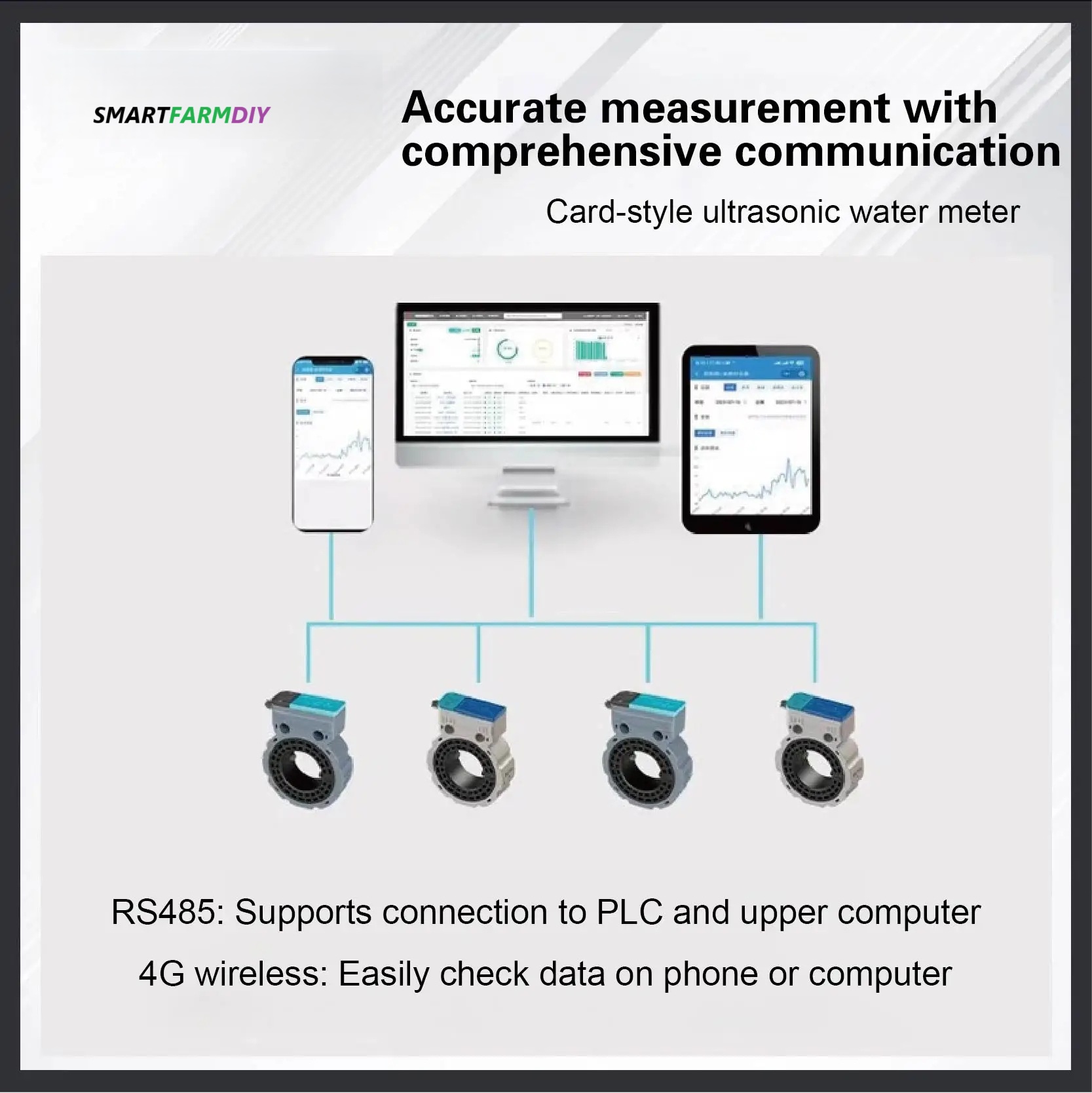

Communication

RS485

Material

Plastic

Installation Method

Flange Clamp

Accuracy

2%

Standard Compliance

IS04064-2014, GBT778-2018

Measured Fluid

Water, Sewage, Seawater (customizable for other liquids)

Fluid Temperature

0.1-30°C

Environment Temperature

-30-45°C; Humidity 100% (RH)

Pressure Resistance

1.6 MPa

Pressure Loss

None

Flow Field Sensitivity

U5 (Upstream), D3 (Downstream)

Climate & Mechanical Class

C

Electromagnetic Class

E2

Communication Interface

RS485/USART/Infrared

Output Signal

Optional OCT

Power Supply

Built-in Lithium Battery (3.6V, 4Ah) / External DC8-24V

Protection Rating

IP68

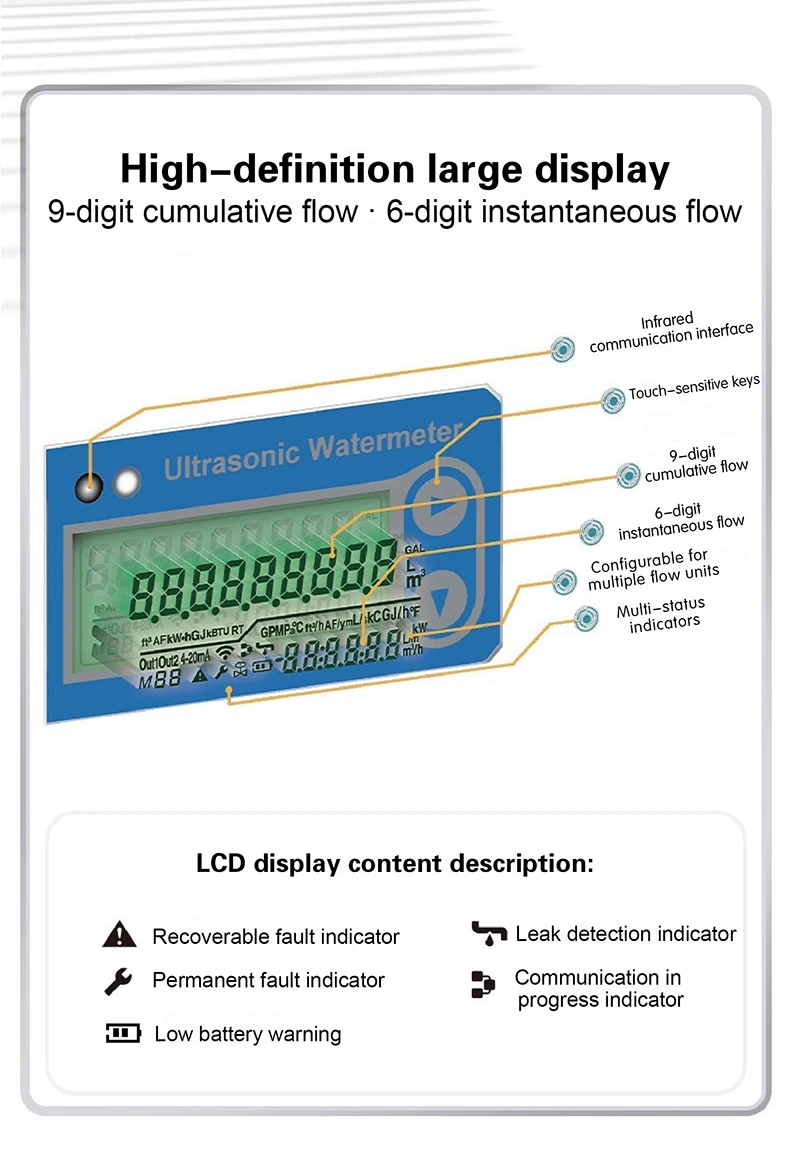

Display

Dual-line local display showing 9-digit cumulative flow, 6-digit instantaneous flow, and various status indicators and units

Data Storage

Ferroelectric memory stores parameters, automatically recording cumulative flow for the past 32 months and 31 days

Measurement Frequency

Standard: 1/sec (adjustable), Calibration: 4/sec

Power Consumption

<30uA, Battery lasts up to 15 years

Material Composition

Nylon + Fiberglass for tube, PEEK sensor, UV-resistant ABS
