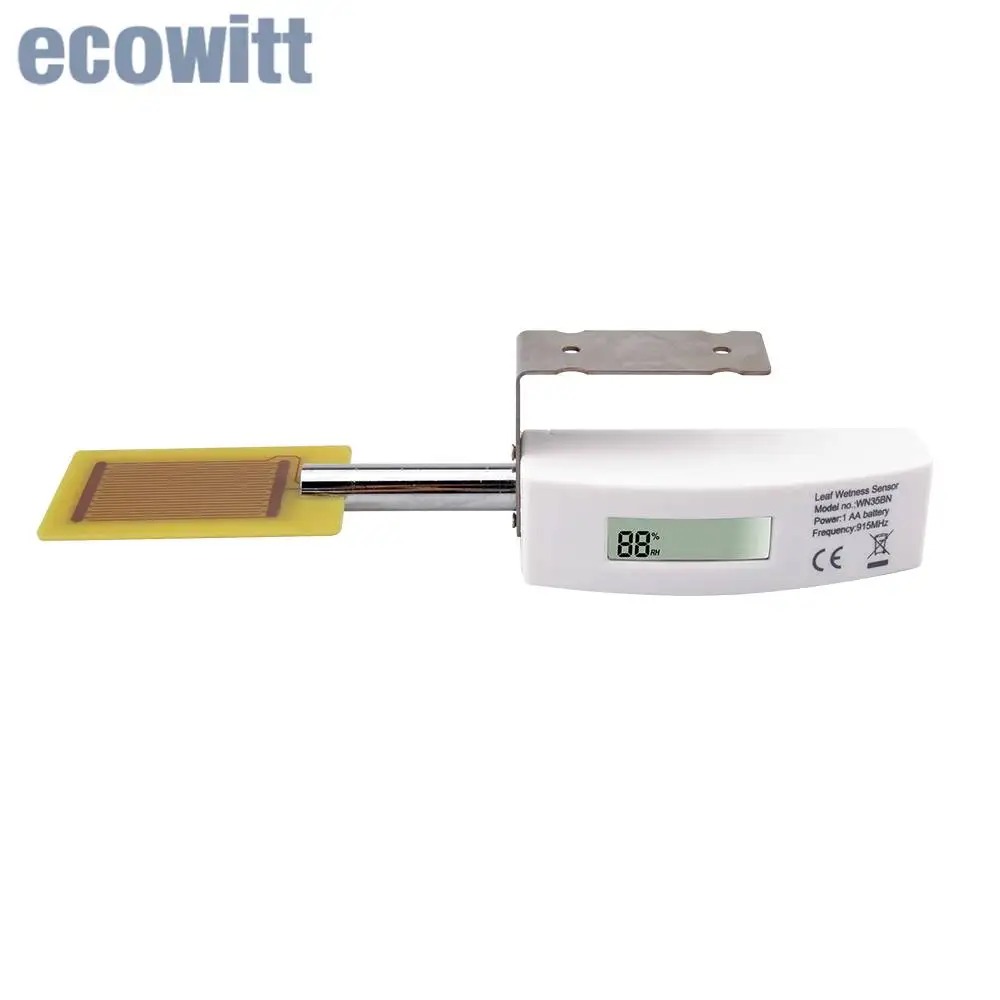

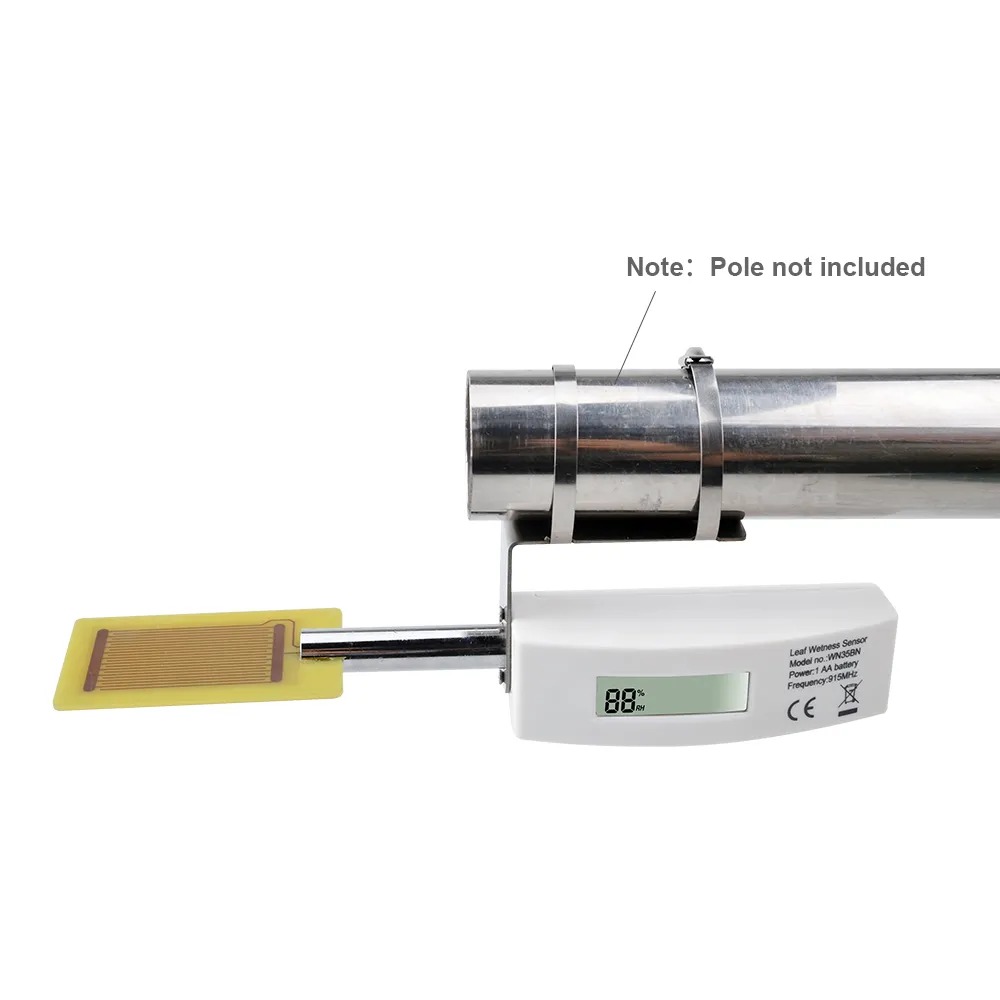

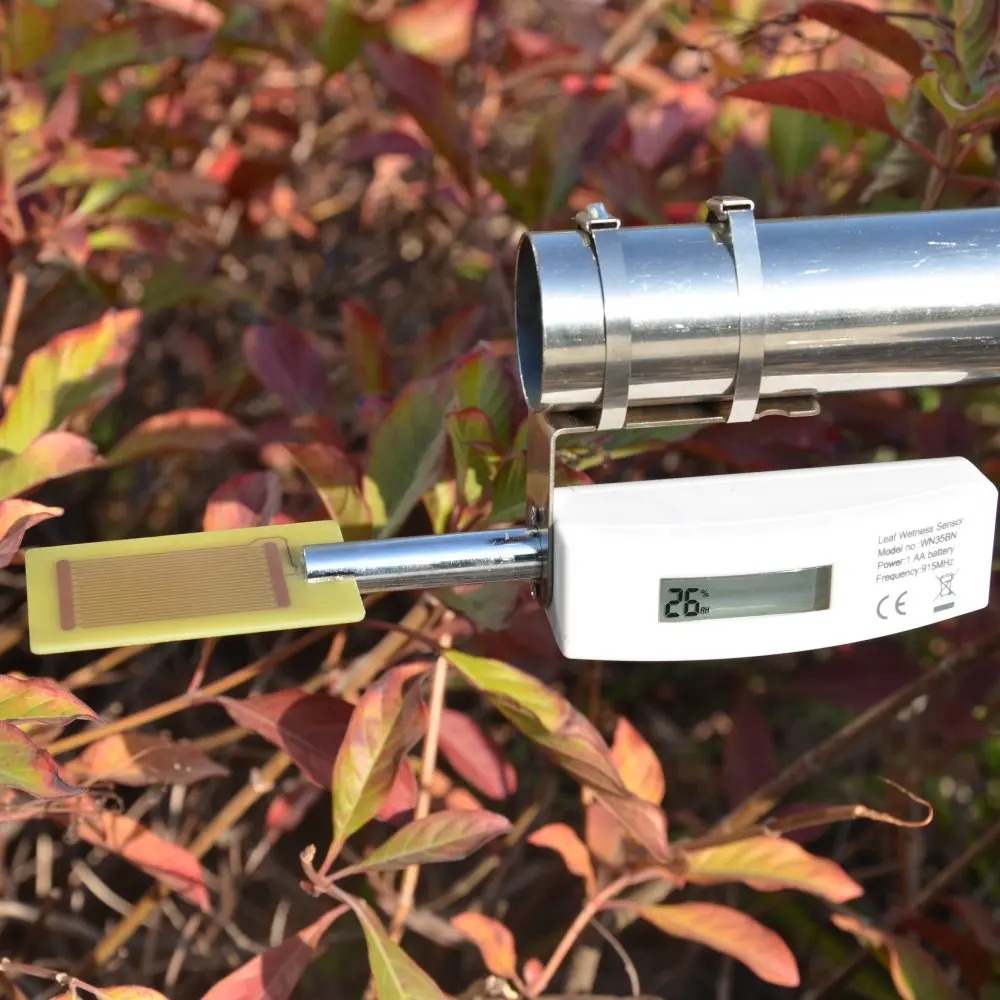

Leaf Surface Humidity on Leaf Sensor with LCD Display, Leaf Wetness Sensor supports up to 8 channels.

Working principle:

Wetness sensor WN35 Leaf Surface is designed to simulate the blade and detect the presence of water, which predicts the wetness of the leaves or plants around the sensor. PLEASE NOTE: WN35 Sensor detects the presence of water on the surface of the leaf. or nearby trees by simulating the blade, not within nearby leaves or trees

feature:

• This sensor can simulate a leaf and detect the moisture level of nearby leaves or plants.

• Wireless range up to 300 feet (100 meters) in open areas.

• Every reading sent was 79.5 seconds .

• LCD screen display for current reading.

• Up to 8 channels support W Kai paired with GW1000/GW1100 Wi-Fi gateway or weather station console. (HP2551/HP3500/HP3501) Field names can be edited on the app or console ( for HP2551only )

Setup guide:

1. Remove the battery door on the back of the output unit by removing the screws. (Make sure the rubber seal remains intact when installing or removing the battery door.)

2. Insert one 1.5V AA battery (be careful of the polarity: the flat side of the battery goes to the spring side of the battery compartment).

3. Humidity readings are displayed on the LCD screen instantly and are normally updated every 79.5 seconds. (Sensor transmission update period)

4. NOTE: If there is no reading on the screen, make sure the battery is inserted in the correct way or a proper reset has occurred. Do not install the battery backwards. You can permanently destroy the sensor.

5. Close the battery door by installing the screws.




   energy	1x 1.5V AA battery (not included)
   Wireless transmission range	100 meters (300 feet)
   Sensor reporting interval	79.5 seconds
   Humidity detection	0~99%
   Accuracy	±10%
   Battery life	Minimum 12 months
   Waterproof level	IP66
