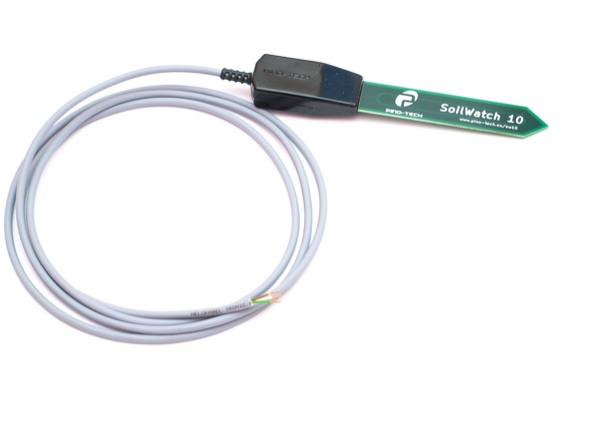

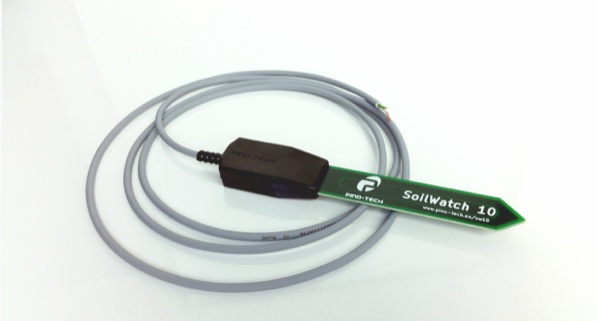

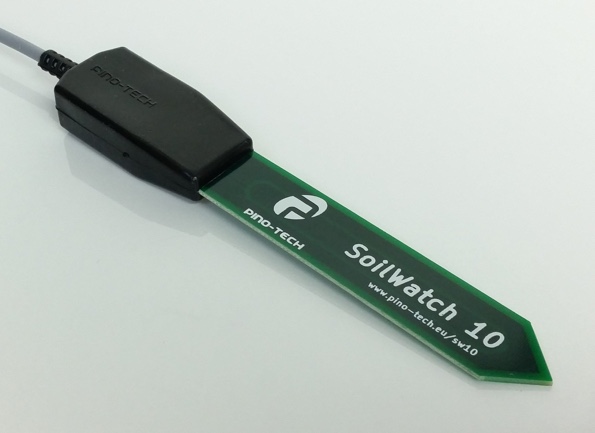

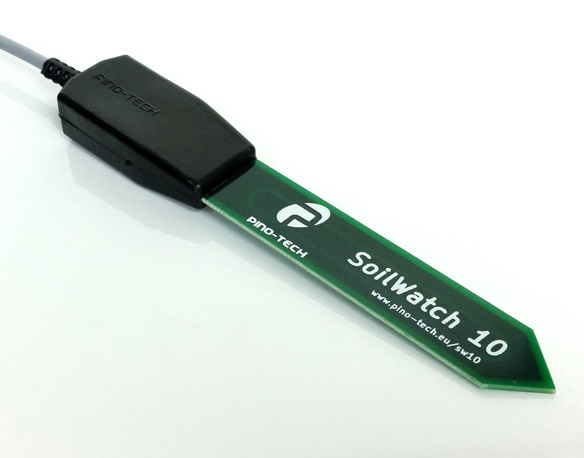

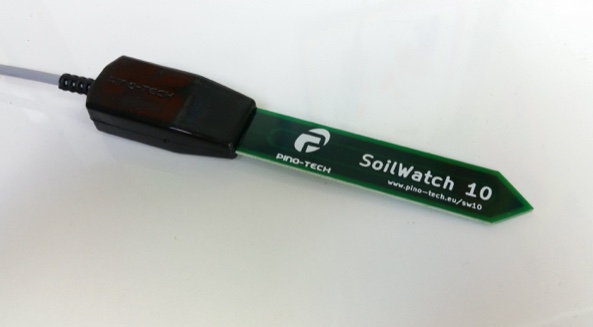

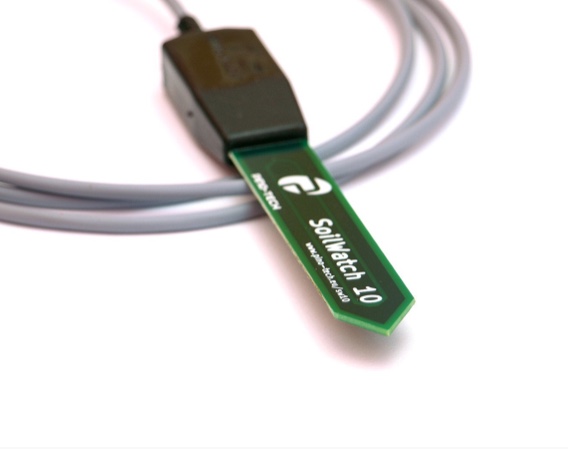

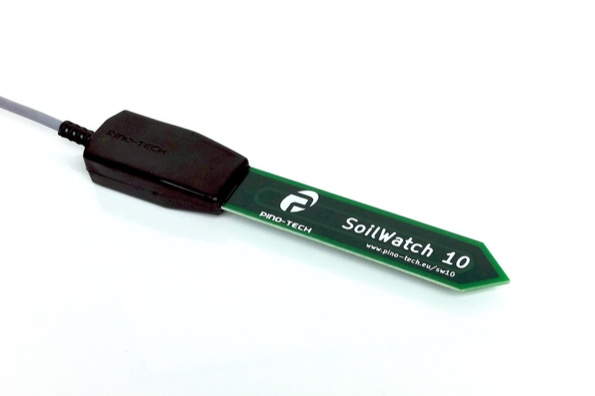

SoilWatch 10 - Soil moisture sensor (ประเทศ Poland)

Specifications:

• Voltage: 2.8 – 5.0V (absolute maximum 5.5V) for 1.1V version
• Voltage: 3.1 – 5.0V (absolute maximum 5.5V) for 3V version
• Output: 0 – 1.1V (approximately) - 1.1V version
• Output: 0 - 3.0V (approximately) - 3V version มีจำหน่ายเฉพาะ3โวลต์
• Max Current: ~24mA
• Temperature drift: Usually less than 5mV
• Operating temperature: 2 – 45 degree C
• Dimensions: 170x25x15mm
• Weight: 52g
• Cable: 1.5m

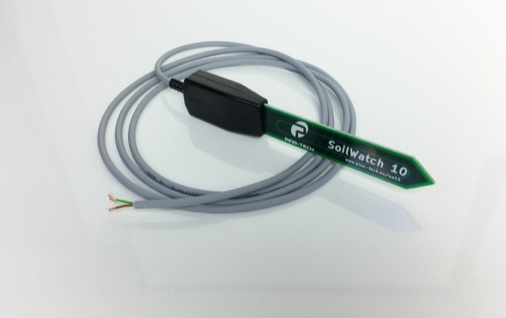

Connections:

• Brown – VCC (+)
• Green – VDD (-)
• White – Output

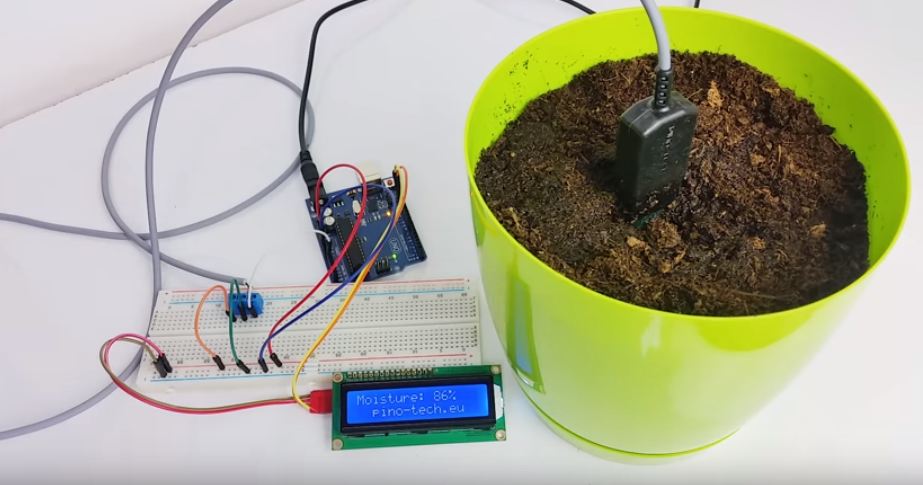

Arduino Example:

/*
SoilWatch 10 soil moisture sensor example

Reads analog value of soil moisture sensor and displays it
on the serial port.

The circuit:
* Sensor output (white wire) connect to Analog A0 on Arduino.
Connect VCC (brown wire) to 3.3V or 5V on Arduino (3.3V gives more stable readings)
Connect GND (green wire) to GND on Arduino.

created 30 Aug. 2017
last updated 9 Feb 2018
by Piotr Trembecki
https://pino-tech.eu/sw10

This example code is in the public domain.

*/

/*
******** SETUP ********

For 1.1V version set is1V1Output to true. The usual maxADC value will be around 1000.
For 3V version set is1V1Output to false. The usual maxADC value will be around 600.

***********************
*/
const int analogInPin = A0; // Analog input pin that the sensor output is attached to (white wire)
int minADC = 0; // replace with min ADC value read in air
int maxADC = 600; // replace with max ADC value read fully submerged in water
bool is1V1Output = false; // set true if 1.1V output sensor is used for 3V set to false


int moistureValue, mappedValue;

void setup() {
// initialize serial communications at 9600 bps:
Serial.begin(9600);

if(is1V1Output == true)
analogReference(INTERNAL); //set ADC reference to internal 1.1V
}

void loop() {
// read the moisture value:
moistureValue = analogRead(analogInPin);

// print ADC results to the serial monitor:
Serial.print("ADC = " );
Serial.print(moistureValue);
Serial.print(", " );

mappedValue = map(moistureValue,minADC,maxADC, 0, 100);

// print mapped results to the serial monitor:
Serial.print("Moisture value = " );
Serial.println(mappedValue);

// wait 500 milliseconds before the next loop
delay(500);
}
